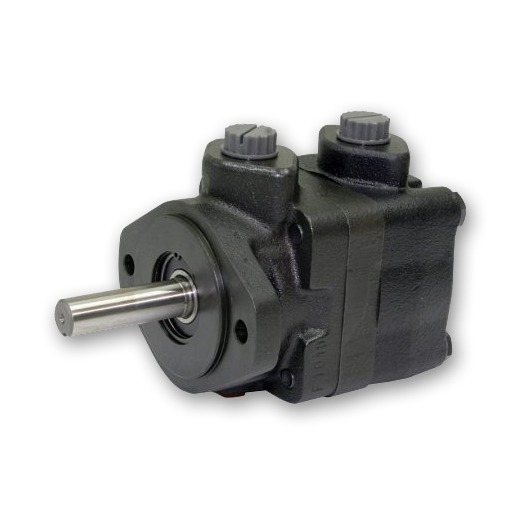

Windust Hydraulics supply the HM2 Series high speed high torque vane motor, manufactured by HOF Hydraulic Solutions.
These spring-loaded vane motors are suitable for industrial and mobile applications. The wide range of speeds and pressure make them ideal for most motor applications.
The motors are constructed with spring loaded vanes offering smooth operation over a wide speed range. Motors can be reversed or stalled underload without damage to the unit when proper relief protection is applied. A full size unrestricted drain line must be connected directly from case drain to reservoir return located below the lowest fluid level in the system.
Two options available: 24.7cc/2200rpm/138 bar and 35.4cc/1800rpm/121 bar.
