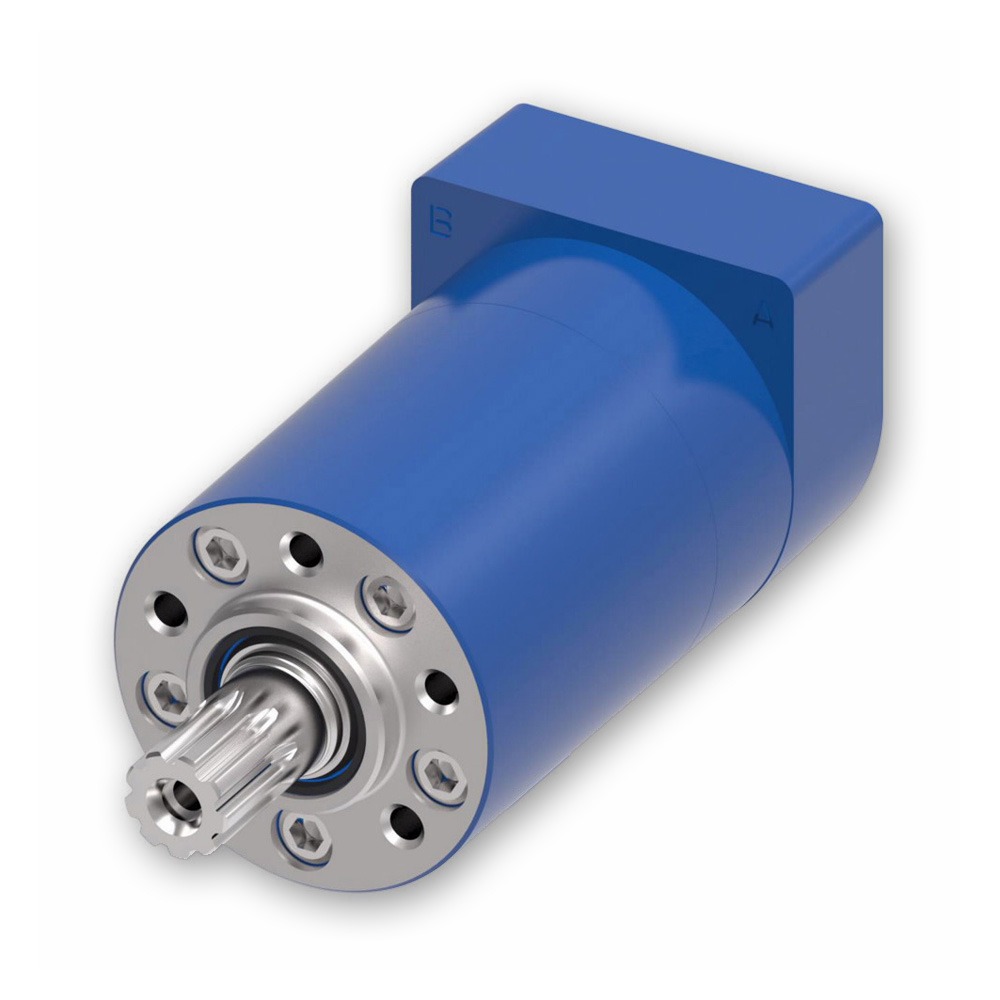

Windust Hydraulics supply the J Series geroler motor by Eaton.
Char-Lynn J Series motors provide a lot of power from a very small package, up to 5 kW of power. These motors are 61mm in diameter and 104 to 130mm in length. The J Series motor shaft and seal allows high case pressure up to 76 bar return line pressure without case drain line. When a case drain line is used a 220 bar peak pressure is allowed in the return line.
Flow: 21 L/min continuous, 25 L/min intermittent
Speed: 1992 RPM continuous, 2458 RPM intermittent
Pressure: 140 bar continuous, 165 bar intermittent
- Constant clearance Geroler set
- Integrated check valves
- Self-lubricating shaft bushing
- High-strength rigid components
- Increased valve seal lands
- High pressure seals
- Variety of displacements, shafts, mounts and special options
