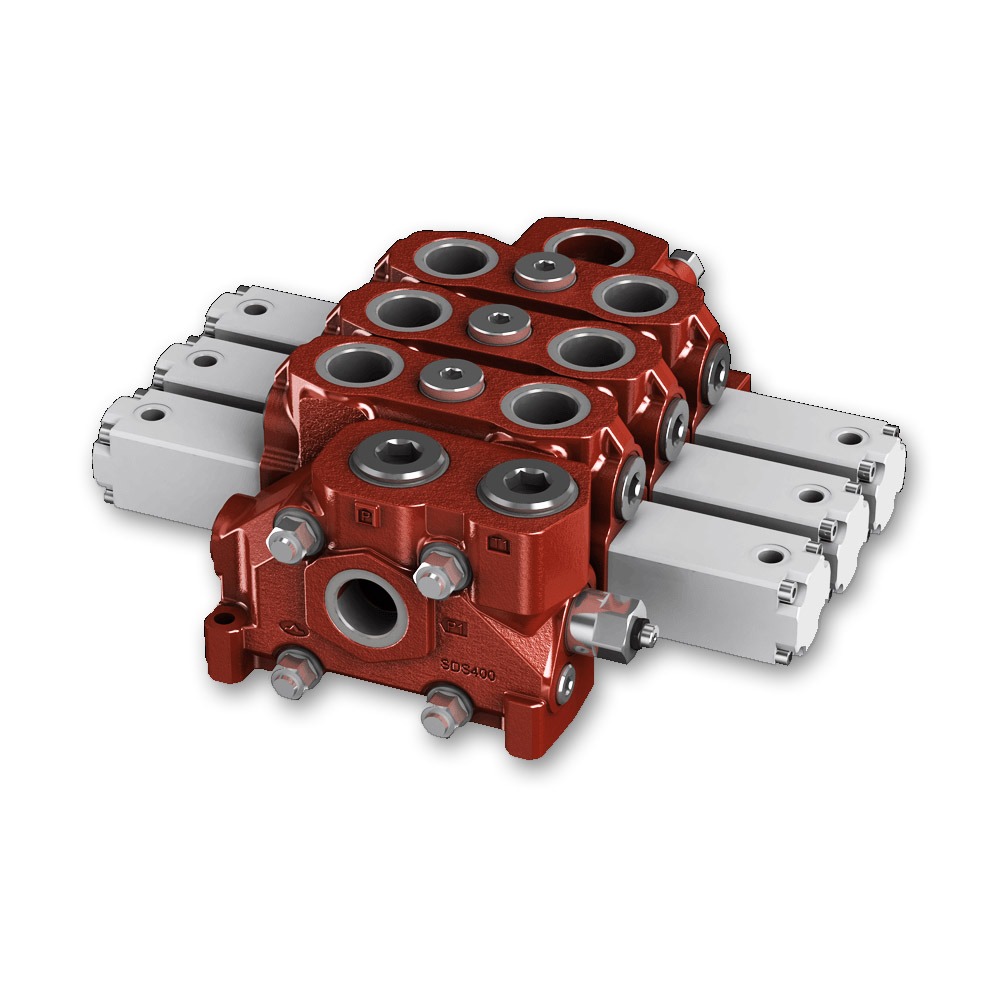

The SDS400 Series sectional valve is manufactured in Italy by Walvoil. Sectional directional control valve for high flow, for fixed displacement hydraulic pumps. From 1 to 10 working sections.
- nominal flow rating 400 L/min
- maximum tank pressure 25 bar
- maximum operating pressure 315 bar
- 1.1/4″ BSPP ports (P,A,B) 1.1/2″ BSPP ports (T,C)
- fitted with a main pilot relief valve on inlet cover and a load check valve on every working section
- open centre
- optional carry-over port
Download the catalogue below for a full breakdown of options.
