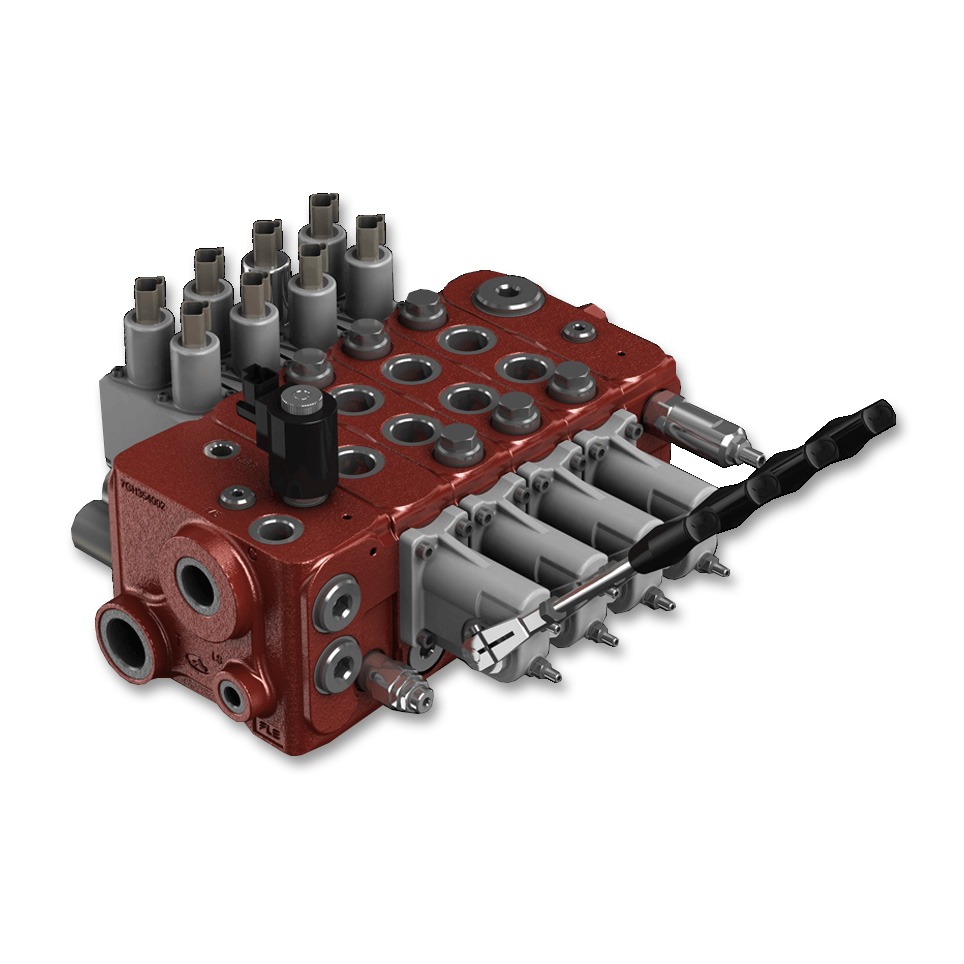

Walvoil DPX160 Sectional Valve

Windust Hydraulics stock the DPX160 Series sectional valves, manufactured in Italy by Walvoil.

  • Max pressure: 420 bar
  • Nominal flow rating: 230 L/min
  • Nominal flow on working ports: 160 L/min

Versatile and complete, it show the highest flow performance of the DPX series. Suitable for applications such as mini/midiexcavators, telehandlers, drilling rigs, agricultural and forestry machines.

  • Valve model for high pressure applications (HP) inspheroidal graphite cast iron
  • Special inlet sections designed for steering applications
  • Inlet sections with or without by-pass valve
  • Manual, hydraulic and proportional electro-hydraulic controls
  • Optional spool position sensors
  • Synergy with the Walvoil electronic system range

DOWNLOAD CATALOGUE
