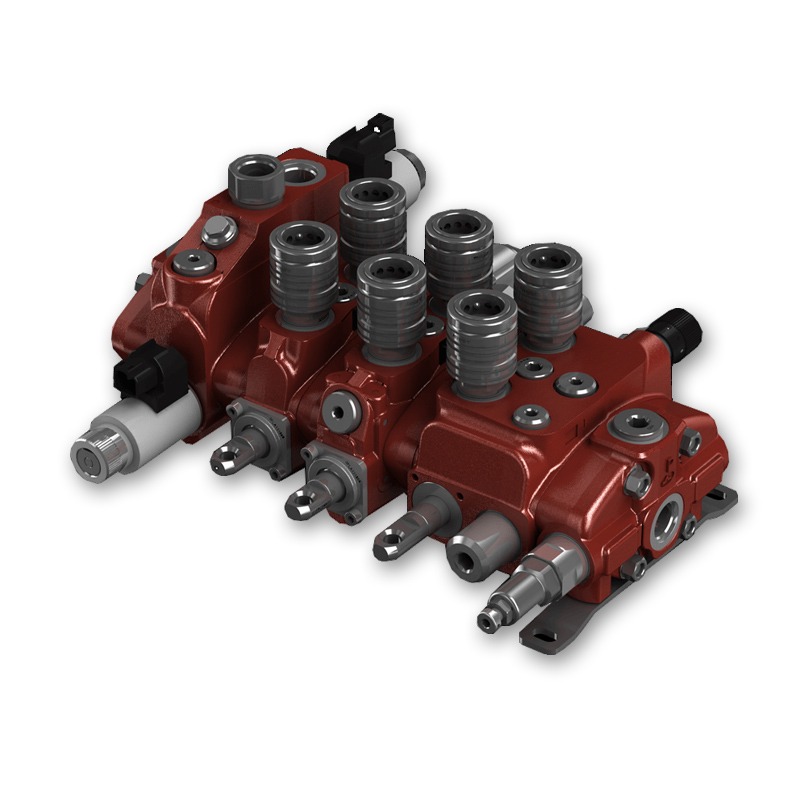

The DLS8 Series sectional valve is manufactured in Italy by Walvoil. Simple, compact and heavy duty design, available with 1 to 14 sections for open and closed centre hydraulic systems. These load sensing directional valves are fitted with compensator in the inlet section and use the SD8 working sections. They can be used with fixed displacement pumps (open centre version) and variable displacement pumps (closed centre version).
- nominal flow rating 120 L/min on P inlet, 100 L/min on A/B ports
- maximum tank pressure 25 bar
- maximum operating pressure 315 bar
- G1/2″ BSP ports (A,B), G3/4″ BSP ports (P,T), G1/4″ (LS)
- fitted with a main pressure relief valve and a load check valve on every working section
Download the catalogue below for a full breakdown of options.
