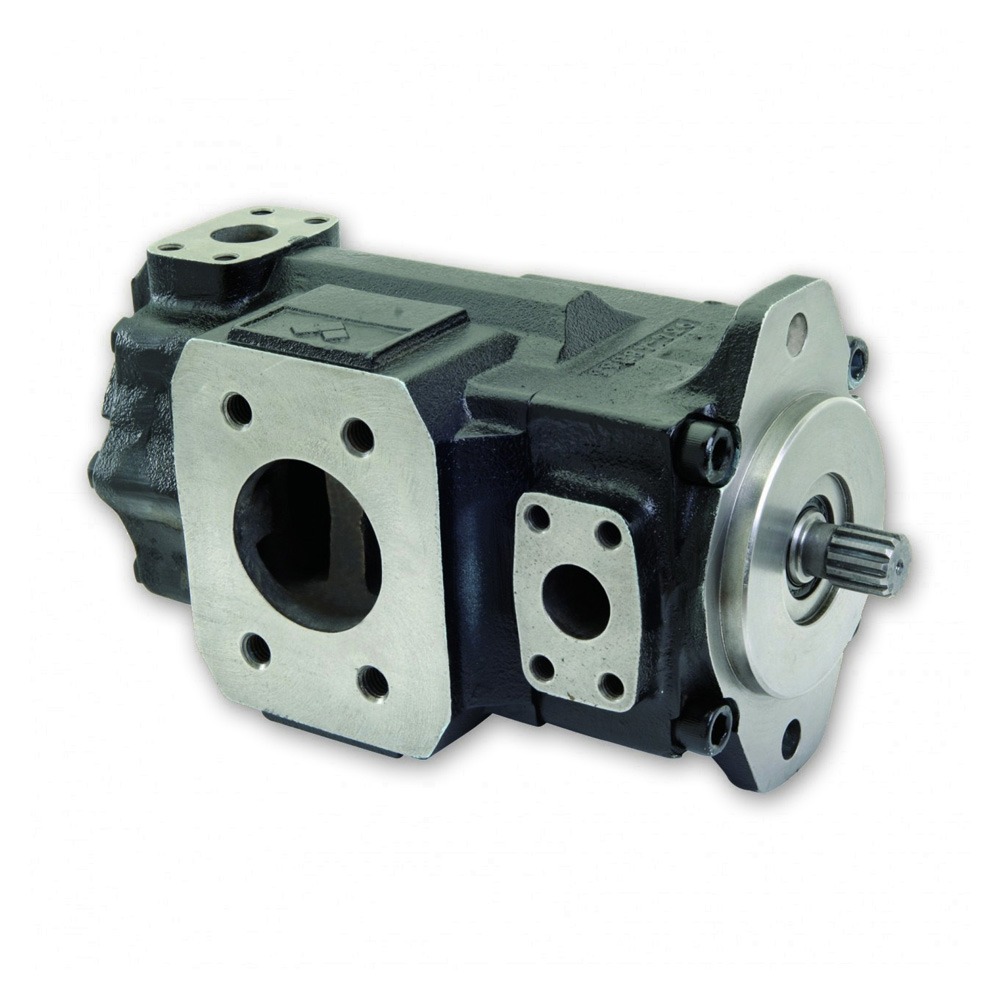

Windust Hydraulics supply the VT6CC double vane pump, manufactured by Veljan.
- Low ripple pressure reduces piping noise and increases life of other components in the circuit.
- High resistance to particle contamination because of double lip vane increases pump life.
- Large variety of options (cam displacement, shaft, port positions) allows customized installation.
- Low speed, low pressure, high viscosity allows application in cold environments with minimum energy consumption and without risk of seizure.
- Camrings are dry lubricant coated and suitable for severe duty applications. This special coating helps in lubrication of the cam surface, especially during cold starts as also while in
operation. Additionally this reduces wear which in turn extends life of the pump. - Side feed holes reduce internal leakage, help balance internal pressures, improve lubrication and provide a cooling effect.
- Vane loading pins load the vane against the cam ring. Loading is in direct proportion to pump discharge pressure, which minimizes wear and prevents overshoot pressure and vane blow-off.
- Maximum pressure: 275 bar
- Maximum displacement: 22-200cc
- Maximum speed: 2800 rpm
- Mounting standard: SAE-B
