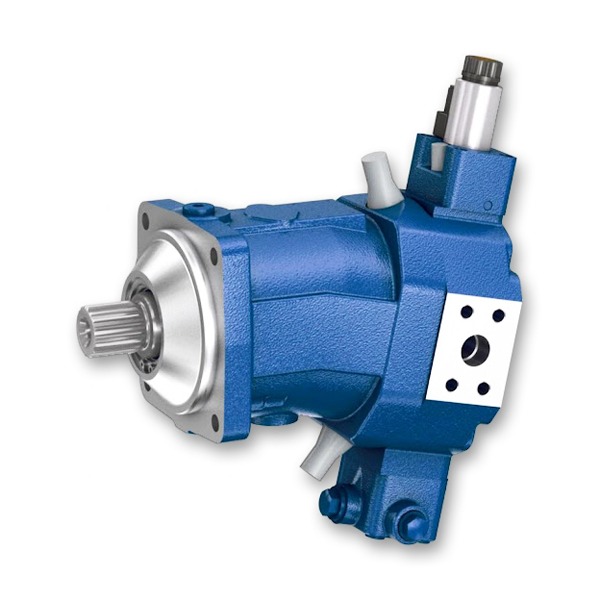

Windust Hydraulics supply the A6VM axial variable piston motor, manufactured by Rexroth.
Available in a range of sizes, 28cc to 1000cc displacement, 179Nm to 5571Nm torque.
- Variable motor with an axial tapered piston rotary group of bent-axis design for hydrostatic drives in open and closed circuits
- For use in mobile and stationary application areas
- The wide control range enables the variable motor to satisfy the requirement for high speed and high torque
- The displacement is infinitely variable from Vg max to Vg min = 0
- The output speed depends on the flow of the pump and the displacement of the motor
- The output torque increases with the pressure differential between the high and low pressure side and with increasing displacement
- Wide control range with hydrostatic transmission
- Wide selection of control devices
- Cost savings through elimination of gear shifts and possibility of using smaller pumps
- Compact, robust bearing system with long service life
- High power density
- Good starting characteristics
- Low moment of inertia
