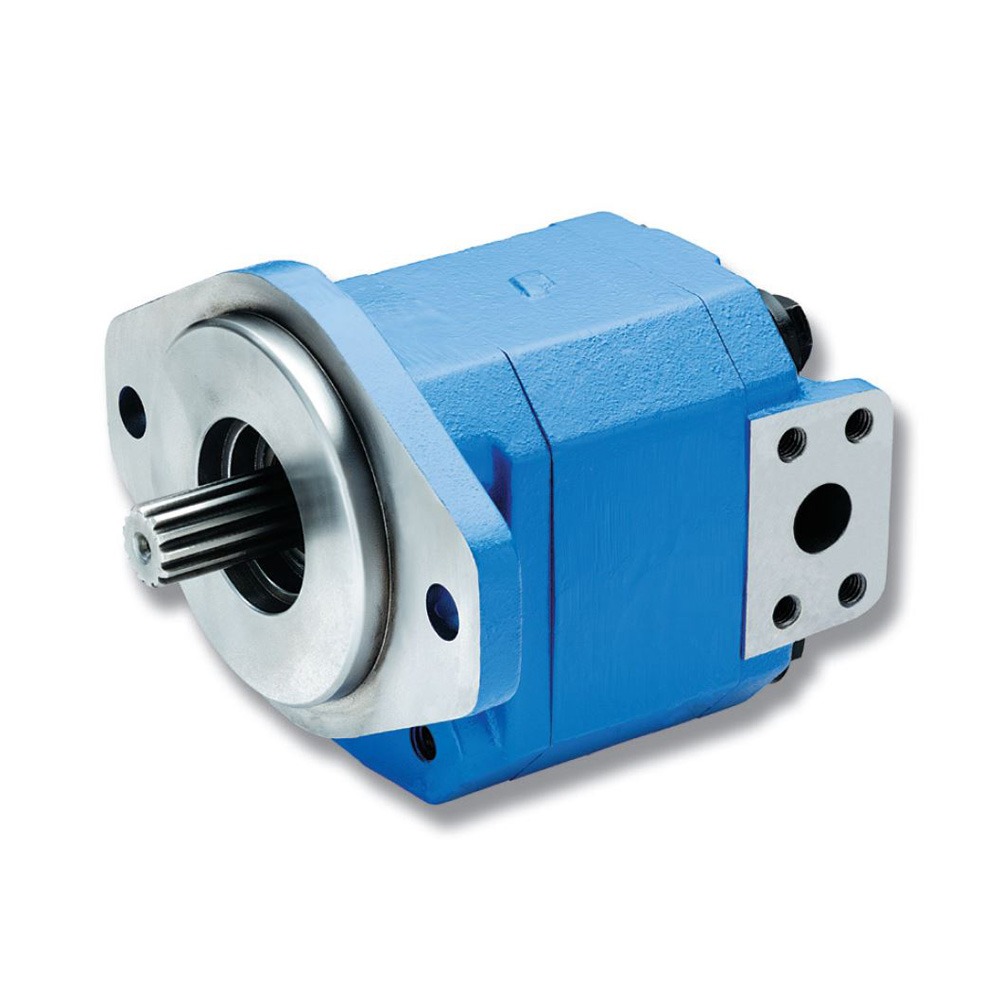

Windust Hydraulics supply the Permco 124 Series cast iron small displacement sleeve bushing gear pump, manufactured in the USA.
- Heavy duty sleeve bushing design in a small frame size
- Working pressure up to 3500 PSI
- Displacements from 0.62 through 2.48 cubic inches
- Speeds up to 3000 RPM
- Flows up to 113 LPM
- Doweled and high strength cast iron construction
- High strength alloy steel gear and shaft sets
- NPT, ORB, Split ports are available
- Pressure balanced wear plates maintain high pump efficiency throughout all operating ranges

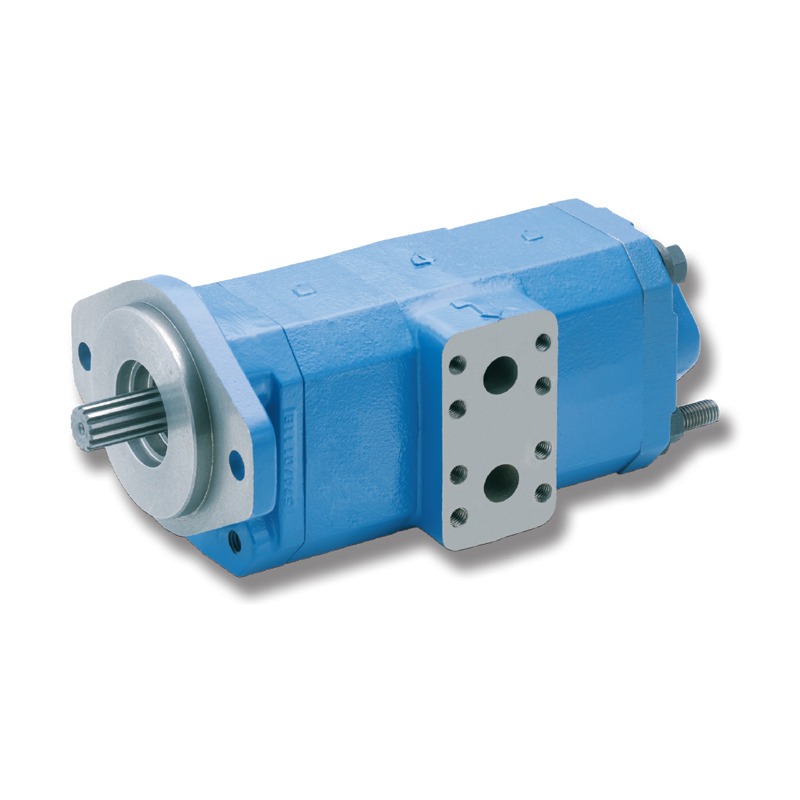

- Both single inlet/single outlets and single inlet/dual outlet bearing carriers
- 100% factory tested
- High pressure 424 version available in select sizes
