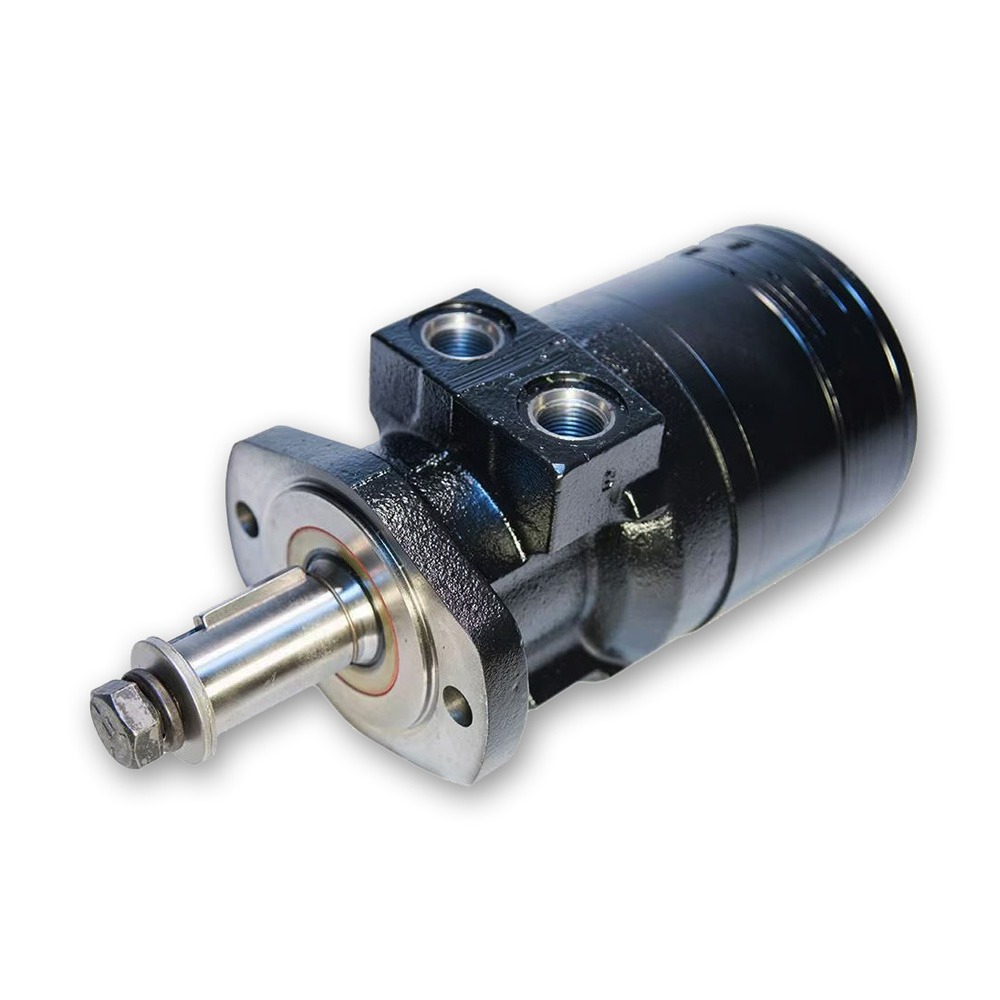

Windust Hydraulics stock the Parker TG Series low speed high torque orbital motors.
The heart of Parker’s TG Series powertrain, the torque link, is an extra heavy duty part that includes patented 60:40 spline geometry. Rugged construction throughout allows the transmission
of over 13,000 lb-in of torque. The entire powertrain is continually washed in cool, high flow fluid to assure long life. Roller vanes and sealed commutator maintain high efficiency and provide smooth low speed performance.
- Displacement options: 141cc to 959CC
- Maximum speed: 660 to 118 RPM
- Maximum flow: 76 L/min (cont), 95 to 114 L/min (int)
- Maximum differential pressure: 207 to 69 Bar (cont), 276 to 103 Bar (int)
- Maximum torque: 390 to 773 Nm (cont), 530 to 1268 Nm (int)
