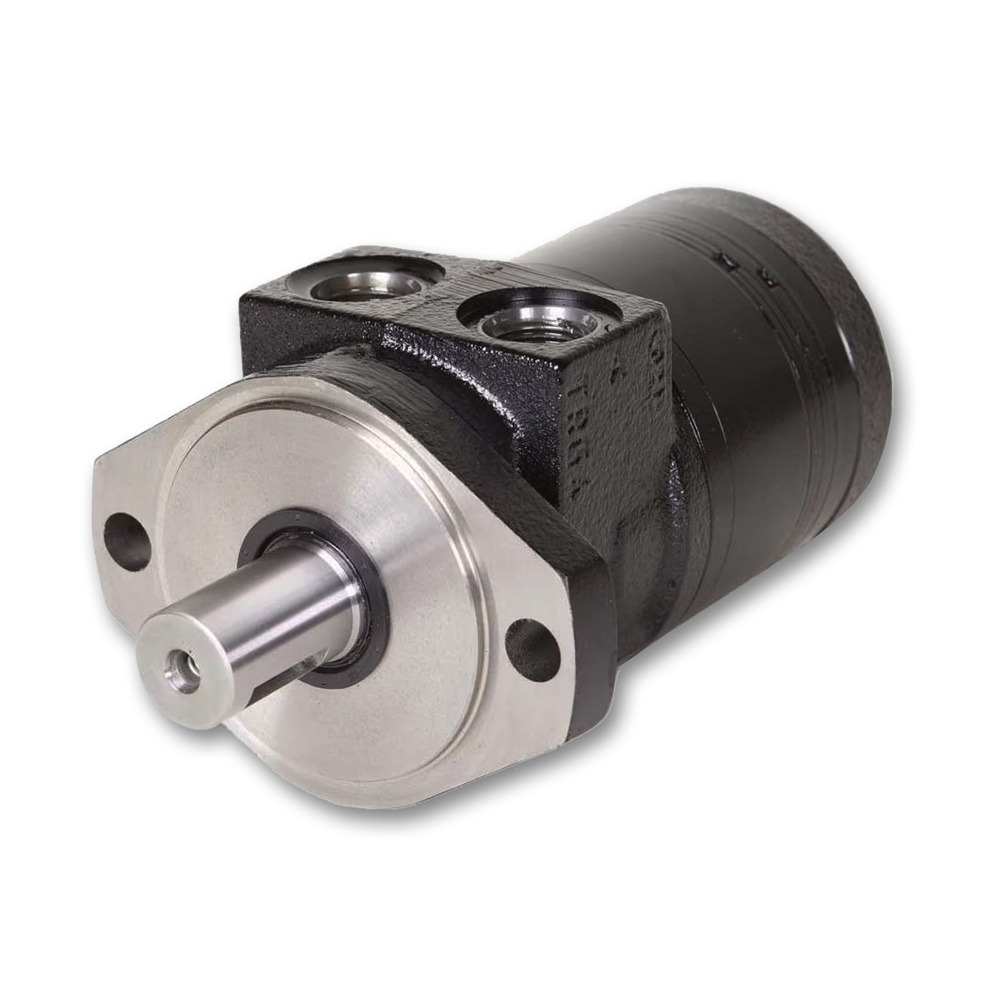

Windust Hydraulics stock the Parker TE Series low speed high torque orbital motors.
This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque. Robust roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections. It uses high pressure shaft seals, robust roller bearings and high flow shaft seal cooling.
- Displacement options: 36cc to 392CC
- Maximum speed: 1141 to 191 RPM
- Maximum flow: 34 to 57 L/min (cont), 42 to 75 L/min (int)
- Maximum differential pressure: 140 to 85 Bar (cont), 190 to 120 Bar (int)
- Maximum torque: 54.6 to 445 Nm (cont), 71.1 to 628 Nm (int)
