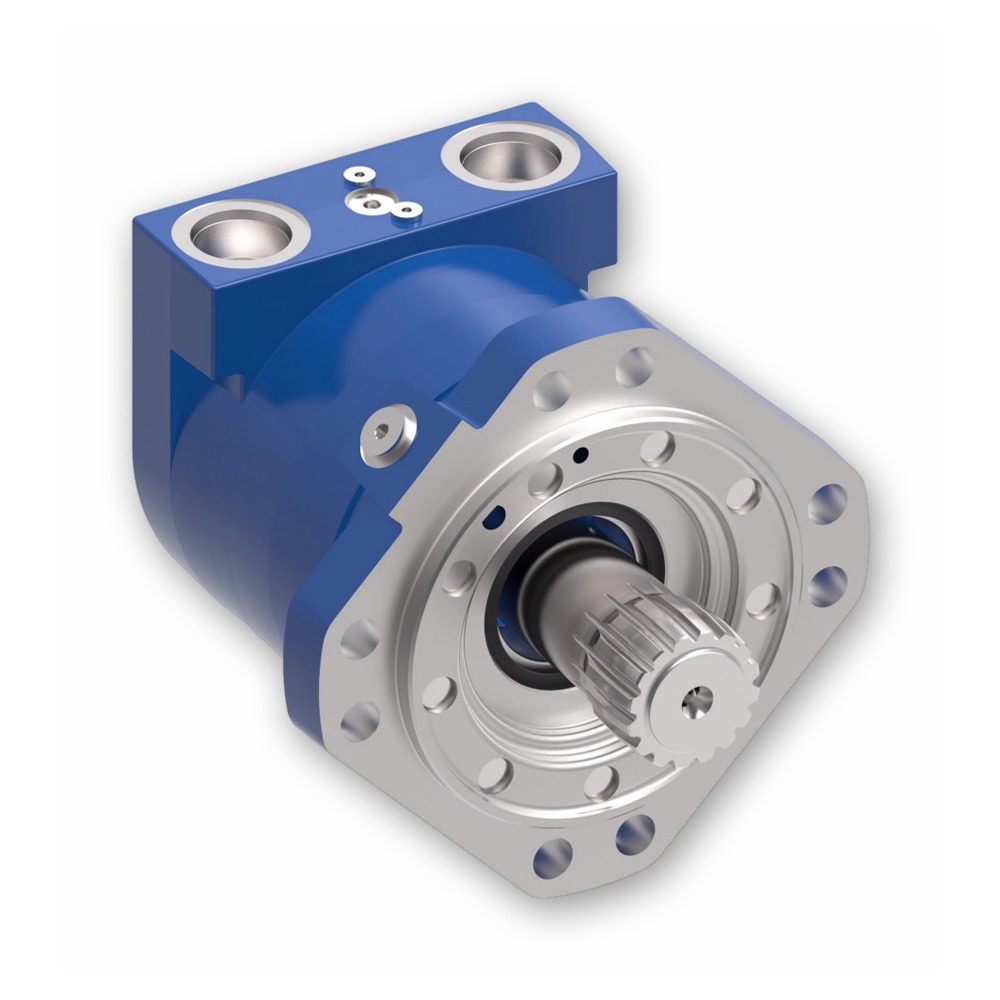

Windust Hydraulics supply the VIS45 Series low speed high torque motor by Eaton.
The VIS 45 is the most powerful motor in the VIS Series product line. Maximum continuous output torque capability is rated to 4520 Nm with a displacement range from 630cc to 1560cc per revolution. VIS 45 motors can be run up to 170 LPM with pressure capability up to 310 bar.
The motor utilizes patented VIS technology with improved high-strength geroler, optimized drive geometry, and two-piece pre-loaded balance plate for increased starting efficiency, reduced leakage and higher back pressure capacity.
A wide variety of options are available including two-speed option, brake options and case flow options for both closed-loop and open loop applications.
- Patented VIS geroler technology
- Three moving components: (geroler‚ star, drive, and output shaft)
- Two-piece pre-loaded pressure balance plate
