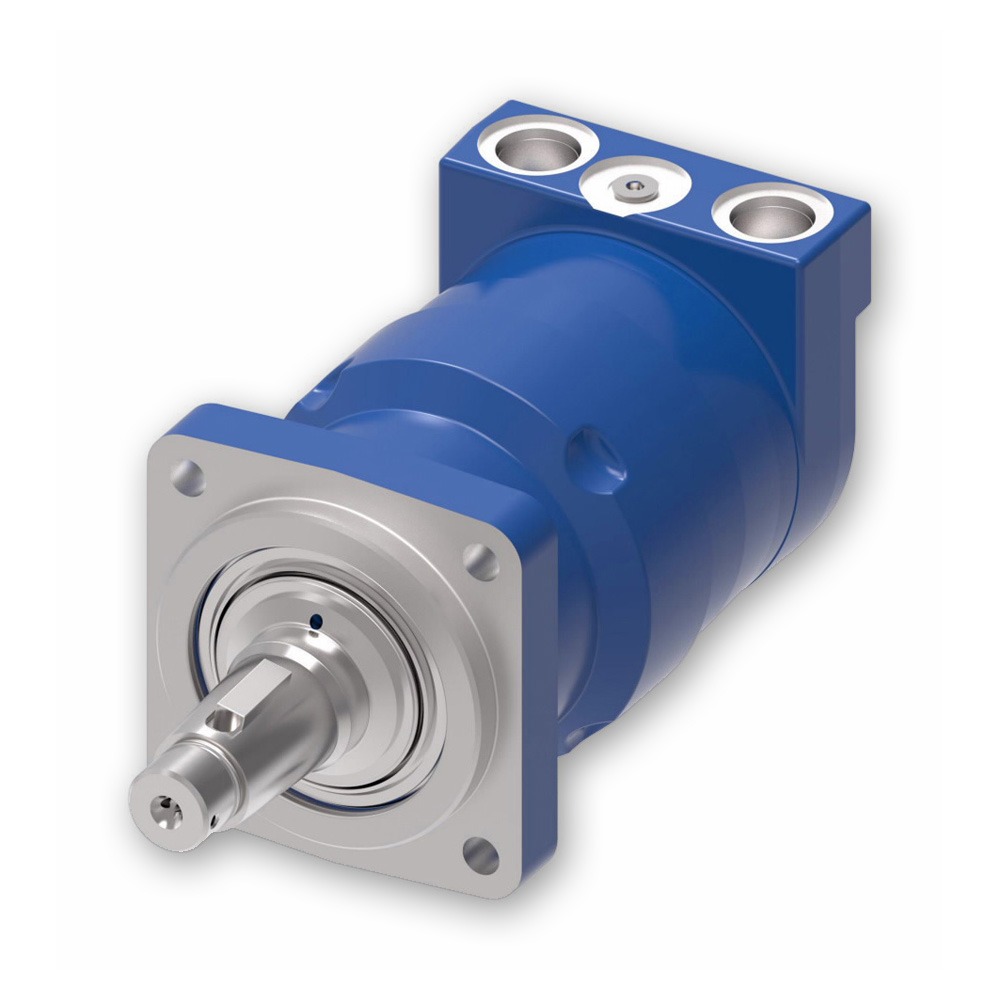

Windust Hydraulics supply the VIS40 Series low speed high torque motor by Eaton.
The VIS 40 Series is the newest addition to the VIS product line. Maximum continuous output torque capability is rated to 2531 Nm with a displacement range from 505cc to 940cc per revolution. VIS 40 motors can be run up to 151 L/min with pressure capability up to 310 bar. The motor utilizes patented VIS technology with improved high-strength geroler‚ optimized
drive geometry, and two-piece pre-loaded balance plate for increased starting efficiency, reduced leakage and higher back pressure capacity.
A wide variety of options are available including two-speed option, brake options and case flow options for both closed-loop and open loop applications.
Flow: 151 L/min continuous, 170 L/min intermittent
Speed: Up to 454 RPM
Pressure: 310 bar continuous, 345 bar intermittent
- Patented VIS geroler technology
- Three moving components: (geroler‚ star, drive, and output shaft)
- Maximized drive strength in compact package size
- Compact package size
- Two-piece pre-loaded pressure balance plate
