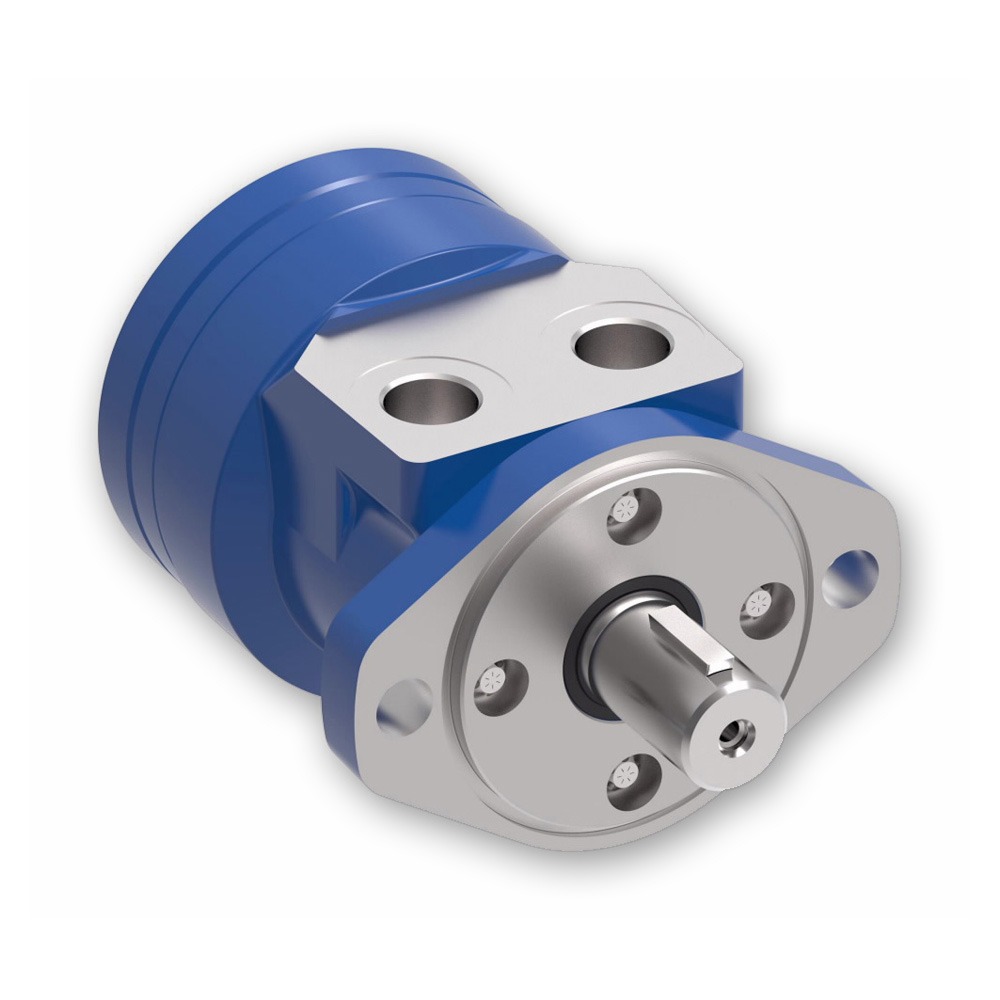

Windust Hydraulics supply the S Series geroler motor by Eaton.
The new improved Char-Lynn S Series motors with optimized geroler geometry offers enhanced performance with reduced drive-running angle while retaining the overall package size of the original S series. Design improvements include upgraded steel end cap, O-Ring section seals, and optimized geroler set. The geroler set has precision machined rollers in the outer ring which provide support with rolling contact between the star and ring. This improves mechanical efficiency, especially at start-up and at low speed conditions. Improvements incorporated into the
latest S Series motor provide reliable leak-free performance and smooth operation at start-up conditions.
Flow: 55 L/min continuous, 75 L/min intermittent
Speed: Up to 963 RPM
Pressure: 135 bar continuous, 170 bar intermittent
- Constant clearance geroler design
- Three moving components (gerotor, drive, shaft)
- Optimized drive running angle
- Three-zone pressure design (inlet, return and case)
- Variety of displacements, shafts and mounts
- Special options to meet customer needs!
