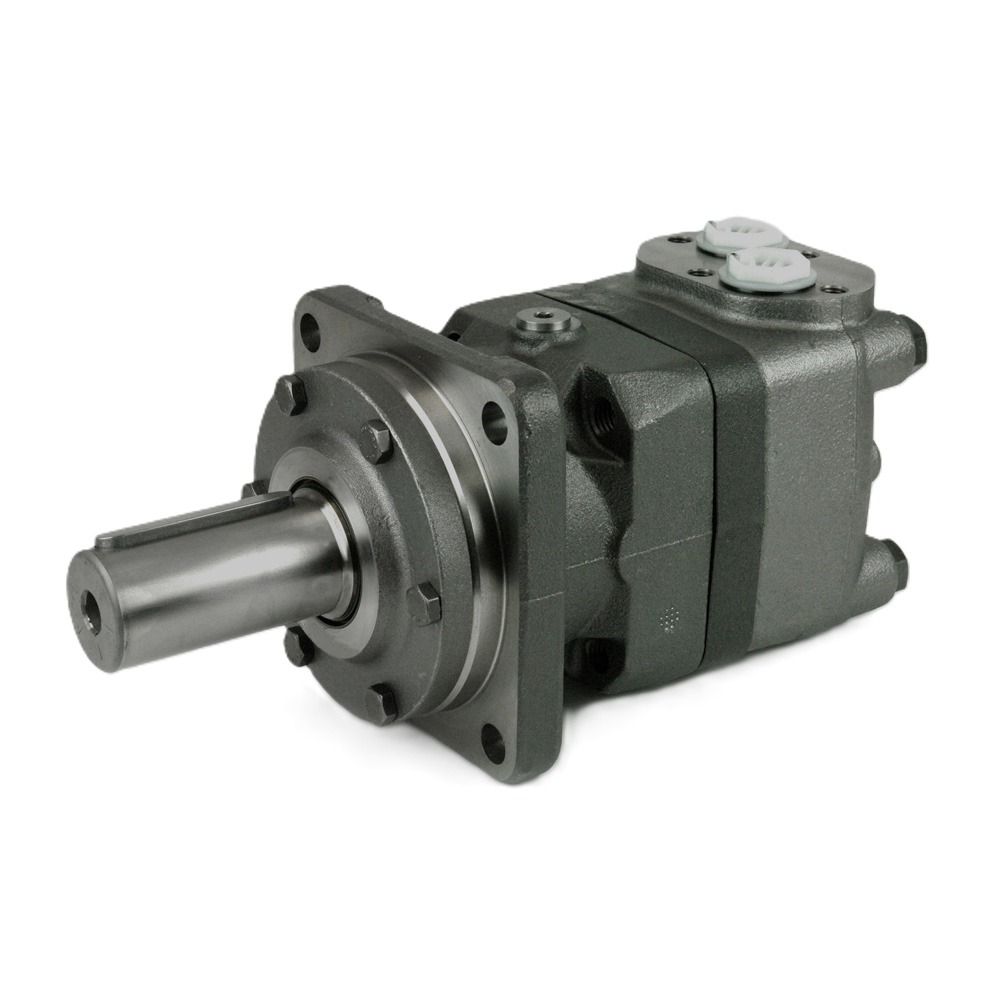

Windust Hydraulics keep the OMT Series disc valve motor, manufactured by Danfoss.
This low speed high torque motor offers:
- Minimum displacement: 160cc
- Maximum displacement: 500cc
- Maximum continuous oil flow: 125 L/min
- Intermediate maximum output: 54 hp / 40kW
- Maximum intermediate pressure drop: 240 bar
Danfoss orbital motors feature:
- Smooth running over the entire speed range
- Constant operating torque over a wide speed range
- High starting torque
- High return pressure without the use of drain line (high pressure shaft seal)
- High efficiency
- Long life under extreme operating conditions
- Robust and compact design
- High radial and axial bearing capacity
- For applications in both open and closed loop hydraulic systems
- Suitable for a wide variety of hydraulics fluids
